A Proton Exchange Membrane (PEM) fuel cell converts hydrogen into electricity through an electrochemical process. This comprehensive guide explains how PEM fuel cells work, their applications, and their role in sustainable energy production.
Key Takeaways:
- PEM fuel cells generate electricity using hydrogen and oxygen
- They produce zero emissions with water as the only byproduct
- Applications range from vehicles to stationary power systems
- Integration with solar power creates sustainable energy cycles
What is a PEM Fuel Cell?
A PEM fuel cell is an energy conversion device that transforms hydrogen’s chemical energy into electrical power. Unlike batteries, fuel cells continue producing electricity as long as fuel is supplied. The technology represents a significant advancement in clean energy generation, offering continuous power output without harmful emissions.
Understanding Hydrogen’s Role
Hydrogen serves as the fundamental fuel source in PEM fuel cells, offering unique advantages in energy density and environmental impact. Pure hydrogen gas (H₂) contains more energy per unit mass than any other fuel source, delivering 120 MJ/kg compared to gasoline’s 44 MJ/kg. This high energy density makes hydrogen particularly valuable for mobility applications where weight efficiency matters.
Hydrogen Production Methods
Green hydrogen production through water electrolysis represents the most sustainable pathway for PEM fuel cell systems. This process uses renewable electricity to split water molecules into hydrogen and oxygen. Alternative production methods include blue hydrogen from natural gas with carbon capture, and gray hydrogen from fossil fuels. The environmental impact of PEM fuel cells directly correlates with the hydrogen production method chosen.
Hydrogen Storage and Delivery
Storage technology significantly influences PEM fuel cell system design. Hydrogen can be stored as a compressed gas at 350-700 bar, as a cryogenic liquid at -253°C, or in solid-state materials through chemical bonding. Each storage method presents distinct advantages and challenges for different applications. The most common approach for vehicles uses carbon-fiber reinforced tanks storing compressed hydrogen gas at 700 bar, enabling driving ranges comparable to conventional vehicles.
Hydrogen Quality Requirements
PEM fuel cells require high-purity hydrogen to maintain performance and longevity. ISO 14687 specifications mandate hydrogen purity above 99.97%, with strict limits on contaminants like carbon monoxide, sulfur compounds, and ammonia. This quality requirement necessitates careful attention to hydrogen production, storage, and delivery infrastructure to prevent system degradation.

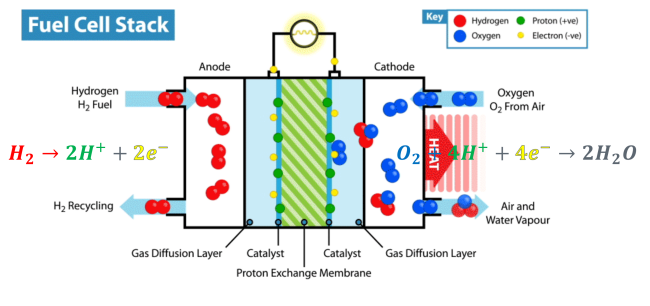

Core Components
The heart of a PEM fuel cell consists of three essential components. The Proton Exchange Membrane conducts protons while separating reactant gases, typically measuring between 25 and 175 micrometers in thickness. Platinum-based catalyst layers facilitate hydrogen splitting and enable oxygen reduction reactions. Gas diffusion layers, made from carbon-based materials, manage water content and conduct electrons throughout the system.
How PEM Fuel Cells Generate Power
The power generation process in a PEM fuel cell follows a precise electrochemical sequence:
- Hydrogen gas enters through the anode side
- Catalyst layers split hydrogen into protons and electrons
- Protons pass through the specialized membrane
- Electrons travel through an external circuit creating usable current
PEM Fuel Cell Applications
Transportation Sector

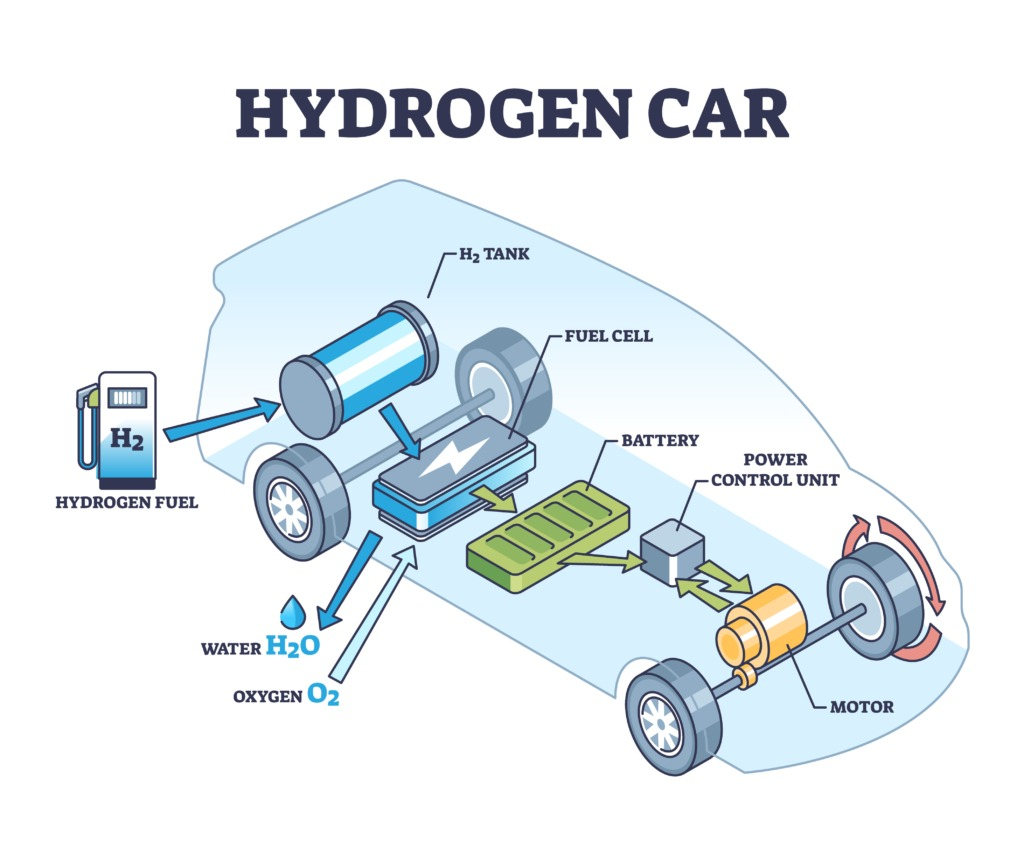

Modern PEM fuel cells power various transportation methods, offering ranges of 300-400 miles per hydrogen fill. Public transit systems benefit from zero-emission buses, while warehouse operations utilize rapid-refueling forklifts. Maritime applications continue expanding, with ships incorporating fuel cell power systems for cleaner operation.
Stationary Power Solutions
The stationary power market encompasses critical infrastructure needs. Backup systems provide 99.999% reliability for essential services. Remote locations benefit from off-grid power capabilities, while data centers rely on uninterrupted power supply systems. Residential applications combine heat and power generation for increased efficiency.
Solar-Hydrogen Integration
PEM fuel cells form a synergistic relationship with solar power systems. During daylight hours, solar panels generate electricity, with excess power directed to hydrogen production and storage. This stored hydrogen then powers fuel cells during periods without sunlight, creating a continuous and reliable energy supply system independent of grid constraints.
Technical Specifications
The operating parameters of PEM fuel cells demonstrate their versatility and efficiency. Operating temperatures range from 50-100°C, with power density reaching 300-1000 mW/cm². System efficiency typically falls between 40-60%, with start-up times under 30 seconds. These specifications make PEM fuel cells suitable for both mobile and stationary applications.
Current Market Status
The PEM fuel cell market continues expanding, with system costs targeting $50-100/kW by 2025. Platinum catalyst loading has decreased to 0.125 mg/cm², significantly reducing material costs. Production scales grow annually, supported by increasing global infrastructure investment. The market shows consistent growth, with annual unit shipments rising 30% year-over-year across key sectors.
Development Challenges
Technical barriers remain a focus of ongoing research and development efforts. Cold start capability improvements, membrane durability enhancement, and catalyst optimization represent primary challenges. Water management systems require continued refinement for optimal performance. Infrastructure development needs include expanded hydrogen production facilities, robust distribution networks, and accessible refueling stations.
Future Outlook
Research priorities concentrate on advancing materials science, improving manufacturing processes, and enhancing system integration capabilities. The market projects continued growth in transportation applications and stationary power systems. Integration with renewable energy sources accelerates as hydrogen infrastructure expands globally. Cost reductions and technological improvements drive increased adoption across sectors.
Additional Resources
Technical Standards
The industry follows established standards including ISO 14687:2019 for hydrogen fuel quality, IEC 62282 for fuel cell technologies, and SAE J2719 for hydrogen quality guidelines.
Safety Guidelines
Comprehensive safety protocols cover hydrogen storage requirements, handling procedures, emergency responses, and maintenance schedules. These guidelines ensure safe operation across all applications.
